ICM42670_fsync.h File Reference

Simple FSYNC API for the ICM-42670-P. More...

#include "ICM42670_driver.h"
#include <stdint.h>

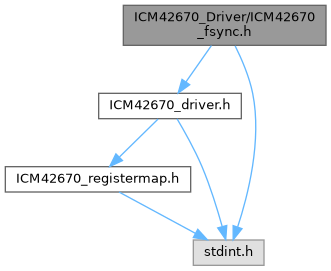

Include dependency graph for ICM42670_fsync.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ICM42670_FsyncConfig_t
	FSYNC configuration passed to ICM42670_Enable_Fsync(). More...
struct	ICM42670_FsyncData_t
	FSYNC event status and timestamp data. More...

Enumerations
enum	ICM42670_FsyncPolarity_t { ICM42670_FSYNC_RISING_EDGE = 0U , ICM42670_FSYNC_FALLING_EDGE = 1U }
	FSYNC input edge selection. More...
enum	ICM42670_FsyncTag_t {   ICM42670_FSYNC_TAG_NONE = 0U , ICM42670_FSYNC_TAG_TEMP = 1U , ICM42670_FSYNC_TAG_GYRO_X = 2U , ICM42670_FSYNC_TAG_GYRO_Y = 3U ,   ICM42670_FSYNC_TAG_GYRO_Z = 4U , ICM42670_FSYNC_TAG_ACCEL_X = 5U , ICM42670_FSYNC_TAG_ACCEL_Y = 6U , ICM42670_FSYNC_TAG_ACCEL_Z = 7U }
	Optional UI data LSB tag for FSYNC events. More...
enum	ICM42670_FsyncClearMode_t { ICM42670_FSYNC_CLEAR_ON_SENSOR_UPDATE = 0U , ICM42670_FSYNC_CLEAR_ON_TAGGED_LSB_READ = 1U }
	FSYNC event flag clear behavior. More...
enum	ICM42670_FsyncInterrupt_t { ICM42670_FSYNC_INT_NONE = 0U , ICM42670_FSYNC_INT1 = 1U , ICM42670_FSYNC_INT2 = 2U }
	FSYNC interrupt routing target. More...

Functions
ICM42670_Status_t	ICM42670_Enable_Fsync (const ICM42670_Config *config, const ICM42670_FsyncConfig_t *fsync_config)
	Enable FSYNC timestamp capture with simple defaults.
ICM42670_Status_t	ICM42670_Disable_Fsync (const ICM42670_Config *config)
	Disable FSYNC timestamp capture and clear FSYNC interrupt routing.
ICM42670_Status_t	ICM42670_Read_Fsync (const ICM42670_Config *config, ICM42670_FsyncData_t *fsync_data)
	Read the read-clear FSYNC event status and latest FSYNC timestamp.

Detailed Description

Simple FSYNC API for the ICM-42670-P.

Enumeration Type Documentation

ICM42670_FsyncClearMode_t

enum ICM42670_FsyncClearMode_t

FSYNC event flag clear behavior.

Enumerator
ICM42670_FSYNC_CLEAR_ON_SENSOR_UPDATE	Clear at next sensor update.
ICM42670_FSYNC_CLEAR_ON_TAGGED_LSB_READ	Clear when tagged LSB is read.

ICM42670_FsyncInterrupt_t

enum ICM42670_FsyncInterrupt_t

FSYNC interrupt routing target.

Enumerator
ICM42670_FSYNC_INT_NONE	Do not route FSYNC to an interrupt pin.
ICM42670_FSYNC_INT1	Route FSYNC to INT1.
ICM42670_FSYNC_INT2	Route FSYNC to INT2.

ICM42670_FsyncPolarity_t

enum ICM42670_FsyncPolarity_t

FSYNC input edge selection.

Enumerator
ICM42670_FSYNC_RISING_EDGE	Capture rising-edge FSYNC events.
ICM42670_FSYNC_FALLING_EDGE	Capture falling-edge FSYNC events.

ICM42670_FsyncTag_t

enum ICM42670_FsyncTag_t

Optional UI data LSB tag for FSYNC events.

Enumerator
ICM42670_FSYNC_TAG_NONE	Do not tag sensor data LSBs.
ICM42670_FSYNC_TAG_TEMP	Tag temperature LSB.
ICM42670_FSYNC_TAG_GYRO_X	Tag gyro X LSB.
ICM42670_FSYNC_TAG_GYRO_Y	Tag gyro Y LSB.
ICM42670_FSYNC_TAG_GYRO_Z	Tag gyro Z LSB.
ICM42670_FSYNC_TAG_ACCEL_X	Tag accel X LSB.
ICM42670_FSYNC_TAG_ACCEL_Y	Tag accel Y LSB.
ICM42670_FSYNC_TAG_ACCEL_Z	Tag accel Z LSB.

Function Documentation

ICM42670_Disable_Fsync()

ICM42670_Status_t ICM42670_Disable_Fsync

(

const ICM42670_Config *

config

)

Disable FSYNC timestamp capture and clear FSYNC interrupt routing.

Parameters

config

Driver configuration with read, write, and delay callbacks.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR or ICM42670_BUSY.

References ICM42670_ERROR, ICM42670_FSYNC_INT_NONE, and ICM42670_OK.

ICM42670_Enable_Fsync()

ICM42670_Status_t ICM42670_Enable_Fsync	(	const ICM42670_Config *	config,
		const ICM42670_FsyncConfig_t *	fsync_config
	)

Enable FSYNC timestamp capture with simple defaults.

Passing NULL for fsync_config selects rising-edge FSYNC, no UI data LSB tag, clear-on-sensor-update behavior, and no interrupt routing.

Parameters

config	Driver configuration with read, write, and delay callbacks.
fsync_config	Optional FSYNC configuration, or NULL for defaults.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR or ICM42670_BUSY.

References ICM42670_FsyncConfig_t::clear_mode, ICM42670_ERROR, ICM42670_FSYNC_CLEAR_ON_TAGGED_LSB_READ, ICM42670_FSYNC_FALLING_EDGE, ICM42670_OK, ICM42670_FsyncConfig_t::interrupt_pin, ICM42670_FsyncConfig_t::polarity, and ICM42670_FsyncConfig_t::tag.

ICM42670_Read_Fsync()

ICM42670_Status_t ICM42670_Read_Fsync	(	const ICM42670_Config *	config,
		ICM42670_FsyncData_t *	fsync_data
	)

Read the read-clear FSYNC event status and latest FSYNC timestamp.

Parameters

config	Driver configuration with a read callback.
fsync_data	Destination for event status and timestamp data.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR.

References ICM42670_FsyncData_t::event_detected, ICM42670_ERROR, ICM42670_OK, ICM42670_FsyncData_t::raw_status, and ICM42670_FsyncData_t::timestamp_delta_us.
