ST7789V3.c File Reference

This file will contain the main logic for using the ST7789V3 chips. More...

#include "ST7789V3.h"
#include <stddef.h>
#include <stdint.h>

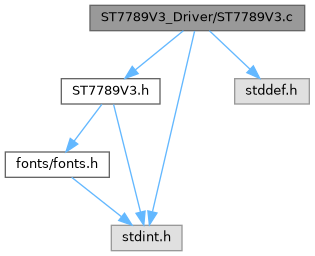

Include dependency graph for ST7789V3.c:

Macros
#define	FILLSCREEN_CHUNK_PIXELS   64U
	Number of pixels written per buffered chunk during full-screen fills.

Functions
void	ST7789V3_init (ST7789V3_Config *config)
	Initialize the display and apply the default startup sequence.
int8_t	SetColorMode (ST7789V3_Config *config, Color_Mode bitdepth)
	Set the controller pixel format.
void	DISPLAYON (ST7789V3_Config *config)
	Enable display output.
void	DISPLAYOFF (ST7789V3_Config *config)
	Disable display output.
void	HardReset (ST7789V3_Config *config)
	Hard reset all settings to default.
void	InvertDisplay (ST7789V3_Config *config, Inversion_Mode Inversion)
	Enable or disable display inversion.
int8_t	SetWindow (ST7789V3_Config *config, uint16_t X_Start, uint16_t X_End, uint16_t Y_Start, uint16_t Y_End)
	Set the active drawing window on the display.
void	SleepMode (ST7789V3_Config *config, Sleep_State sleepstate)
	Put the display into sleep mode or wake it up.
void	FillScreen (ST7789V3_Config *config, uint32_t hexcolor)
	Fill the entire LCD with a single RGB565 color. e.g take orange convert it to 5 bit 6 bit 5 bit TODO: Make switch case for 12 bit 16, 18 bit.
int8_t	DrawPixel (ST7789V3_Config *config, uint16_t x, uint16_t y, uint32_t hexcolor)
	Draw a single pixel using a 24-bit RGB888 input color.
void	DrawChar (ST7789V3_Config *config, uint16_t x, uint16_t y, char user_char, uint32_t hexcolor, const FontDef *font)
	Draw a single printable ASCII character.
void	SetRotation (ST7789V3_Config *config, Orientation orientation)
	Change the logical display rotation.
void	DrawString (ST7789V3_Config *config, uint16_t x, uint16_t y, const char *str, uint32_t hexcolor, const FontDef *font)
	Draw a null-terminated string.
void	DrawLine (ST7789V3_Config *config, uint16_t x0, uint16_t y0, uint16_t x1, uint16_t y1, uint32_t hexcolor)
	Draw a line between two points using Bresenham's algorithm.
void	DrawRectangle (ST7789V3_Config *config, uint16_t x, uint16_t y, uint16_t width, uint16_t height, uint32_t hexcolor)
	Draw an unfilled rectangle outline.
void	DrawFilledRectangle (ST7789V3_Config *config, uint16_t x, uint16_t y, uint16_t width, uint16_t height, uint32_t hexcolor)
	Draw a filled rectangle.
void	DrawCircle (ST7789V3_Config *config, uint16_t x_center, uint16_t y_center, uint16_t radius, uint32_t hexcolor)
	Draw a circle outline using the midpoint circle algorithm.
void	DrawFilledCircle (ST7789V3_Config *config, uint16_t x_center, uint16_t y_center, uint16_t radius, uint32_t hexcolor)
	Draw a filled circle using the midpoint circle algorithm.
int8_t	ST7789V3_WriteBuffer_DMA (ST7789V3_Config *config, const uint8_t *buf, uint16_t len)
	Start a non-blocking DMA write of pixel data to the display.
void	ST7789V3_DMA_Complete (ST7789V3_Config *config)
	Finish a successful DMA transfer and run the completion callback.
void	ST7789V3_DMA_Error (ST7789V3_Config *config)
	Finish a failed DMA transfer and run the error callback.

Detailed Description

This file will contain the main logic for using the ST7789V3 chips.

Author

Anthony / SleepPandas
