ICM42670_fifo.h File Reference

Simple FIFO and interrupt routing API for the ICM-42670-P. More...

#include "ICM42670_driver.h"
#include <stdint.h>

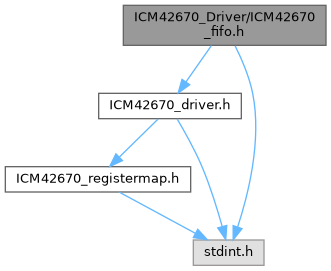

Include dependency graph for ICM42670_fifo.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ICM42670_FifoPacket_t
	Parsed FIFO packet using the default 16-bit FIFO format. More...

Macros
#define	ICM42670_FIFO_DEFAULT_WATERMARK_BYTES   64U
	Default FIFO watermark used by ICM42670_FIFO_Init().
#define	ICM42670_FIFO_DEFAULT_PACKET_BYTES   16U
	Maximum bytes in the default 16-bit accel + gyro FIFO packet.

Enumerations
enum	ICM42670_IntPin_t { ICM42670_INT_PIN1 = 0U , ICM42670_INT_PIN2 = 1U }
	ICM-42670-P interrupt output pins. More...
enum	ICM42670_FifoIntSource_t { ICM42670_FIFO_INT_NONE = 0x00U , ICM42670_FIFO_INT_THRESHOLD = 0x04U , ICM42670_FIFO_INT_FULL = 0x02U , ICM42670_FIFO_INT_THRESHOLD_AND_FULL }
	FIFO interrupt sources that can be routed to INT1 or INT2. More...

Functions
ICM42670_Status_t	ICM42670_FIFO_Init (const ICM42670_Config *config)
	Initialize the FIFO with simple 16-bit accel and gyro packet defaults.
ICM42670_Status_t	ICM42670_FIFO_UseFullBuffer (const ICM42670_Config *config)
	Disable APEX features so the FIFO can use the full 2.25 KB buffer.
ICM42670_Status_t	ICM42670_FIFO_SetWatermark (const ICM42670_Config *config, uint16_t watermark_bytes)
	Set the FIFO watermark level in bytes.
ICM42670_Status_t	ICM42670_FIFO_Flush (const ICM42670_Config *config)
	Flush all unread FIFO data.
ICM42670_Status_t	ICM42670_FIFO_Read (const ICM42670_Config *config, ICM42670_FifoPacket_t *packets, uint16_t max_packets, uint16_t *packets_read)
	Read and parse available FIFO packets.
ICM42670_Status_t	ICM42670_FIFO_RouteInterrupt (const ICM42670_Config *config, ICM42670_IntPin_t pin, ICM42670_FifoIntSource_t sources)
	Route FIFO threshold and/or FIFO full interrupts to INT1 or INT2.

Detailed Description

Simple FIFO and interrupt routing API for the ICM-42670-P.

Enumeration Type Documentation

ICM42670_FifoIntSource_t

enum ICM42670_FifoIntSource_t

FIFO interrupt sources that can be routed to INT1 or INT2.

Enumerator
ICM42670_FIFO_INT_NONE	Clear FIFO interrupt routing.
ICM42670_FIFO_INT_THRESHOLD	FIFO watermark interrupt.
ICM42670_FIFO_INT_FULL	FIFO full interrupt.
ICM42670_FIFO_INT_THRESHOLD_AND_FULL	Both FIFO sources.

ICM42670_IntPin_t

enum ICM42670_IntPin_t

ICM-42670-P interrupt output pins.

Enumerator
ICM42670_INT_PIN1	INT1 output pin.
ICM42670_INT_PIN2	INT2 output pin.

Function Documentation

ICM42670_FIFO_Flush()

ICM42670_Status_t ICM42670_FIFO_Flush

(

const ICM42670_Config *

config

)

Flush all unread FIFO data.

Parameters

config

Driver configuration with write and delay callbacks.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR.

References ICM42670_Config::delay_ms, ICM42670_ERROR, and ICM42670_OK.

Referenced by ICM42670_FIFO_Init().

ICM42670_FIFO_Init()

ICM42670_Status_t ICM42670_FIFO_Init

(

const ICM42670_Config *

config

)

Initialize the FIFO with simple 16-bit accel and gyro packet defaults.

Configures stream mode, disables FIFO bypass, enables accel and gyro FIFO packets, uses byte-based FIFO counts, applies a small watermark, and flushes stale FIFO data before use.

Parameters

config

Driver configuration with read, write, and delay callbacks.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR or ICM42670_BUSY.

References ICM42670_ERROR, ICM42670_FIFO_DEFAULT_WATERMARK_BYTES, ICM42670_FIFO_Flush(), ICM42670_FIFO_SetWatermark(), and ICM42670_OK.

ICM42670_FIFO_Read()

ICM42670_Status_t ICM42670_FIFO_Read	(	const ICM42670_Config *	config,
		ICM42670_FifoPacket_t *	packets,
		uint16_t	max_packets,
		uint16_t *	packets_read
	)

Read and parse available FIFO packets.

Reads up to max_packets parsed FIFO records into packets and writes the number of parsed packets to packets_read.

Parameters

config	Driver configuration with a read callback.
packets	Destination array for parsed packets.
max_packets	Maximum number of packets to parse into packets.
packets_read	Number of packets parsed by this call.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR.

References ICM42670_ERROR, ICM42670_FIFO_DEFAULT_PACKET_BYTES, and ICM42670_OK.

ICM42670_FIFO_RouteInterrupt()

ICM42670_Status_t ICM42670_FIFO_RouteInterrupt	(	const ICM42670_Config *	config,
		ICM42670_IntPin_t	pin,
		ICM42670_FifoIntSource_t	sources
	)

Route FIFO threshold and/or FIFO full interrupts to INT1 or INT2.

Passing ICM42670_FIFO_INT_NONE clears FIFO routing for the selected pin while preserving other interrupt sources.

Parameters

config	Driver configuration with read and write callbacks.
pin	Target interrupt pin.
sources	FIFO interrupt sources to route.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR.

References ICM42670_ERROR, ICM42670_FIFO_INT_FULL, ICM42670_FIFO_INT_THRESHOLD, ICM42670_INT_PIN1, ICM42670_INT_PIN2, and ICM42670_OK.

ICM42670_FIFO_SetWatermark()

ICM42670_Status_t ICM42670_FIFO_SetWatermark	(	const ICM42670_Config *	config,
		uint16_t	watermark_bytes
	)

Set the FIFO watermark level in bytes.

The watermark is used by the FIFO threshold interrupt source. Values larger than the 12-bit FIFO watermark field are clamped.

Parameters

config	Driver configuration with read and write callbacks.
watermark_bytes	FIFO threshold in bytes.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR.

References ICM42670_ERROR, and ICM42670_OK.

Referenced by ICM42670_FIFO_Init().

ICM42670_FIFO_UseFullBuffer()

ICM42670_Status_t ICM42670_FIFO_UseFullBuffer

(

const ICM42670_Config *

config

)

Disable APEX features so the FIFO can use the full 2.25 KB buffer.

APEX and full FIFO capacity share SRAM. Call this only when APEX features are not needed.

Parameters

config

Driver configuration with read, write, and delay callbacks.

Returns

ICM42670_OK on success, otherwise ICM42670_ERROR or ICM42670_BUSY.

References ICM42670_ERROR, and ICM42670_OK.
